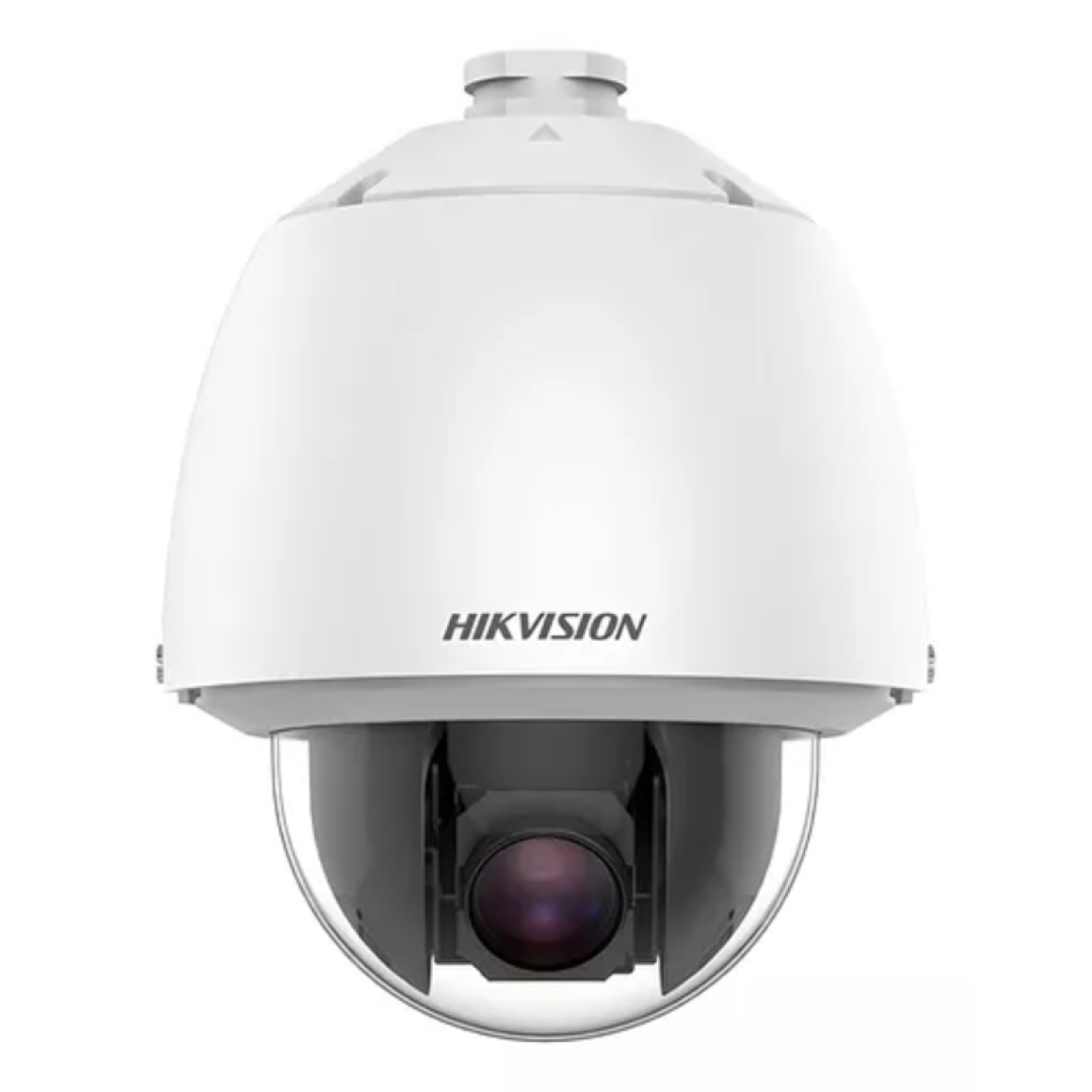

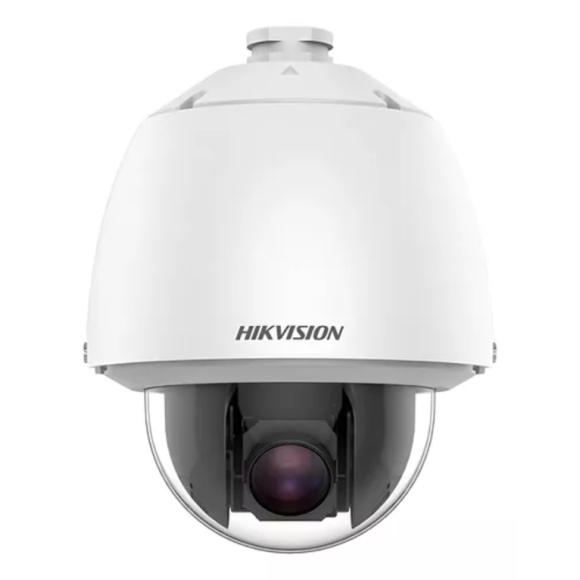

2 MP 32X COM TECNOLOGIA DARKFIGHTER NETWORK SPEED DOME

Câmera
Sensor de imagem
1/2.8" Progressive Scan CMOS
Resolução máx.
1920 × 1080
Iluminação mínima
Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)
Velocidade do obturador
1 s to 1/30,000 s
Dia e noite
IR cut filter
Zoom
32x optional, 16x digital
Obturador lento
Yes
Lentes
Distância focal
4.8 mm to 153.6 mm
FOV (campo de visão)
Horizontal field of view: 50.8° to 2.6° (wide-tele),

Vertical field of view: 29.4° to 1.5° (wide-tele),

Diagonal field of view:57.4° to 3° (wide-tele)

Foco
Auto, semi-auto, manual
Abertura
Max. F1.6
Velocidade de zoom
Approx. 4.8 s
PTZ
Faixa de movimento (panorâmica)
360°
Faixa de movimento (inclinação)
-5° to 90° (auto flip)
Velocidade de panoramização
Pan speed: configurable from 0.1° to 250°/s; preset speed: 300°/s
Tilt Speed
Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Proportional Pan
Yes
Predefinições
300
Congelamento das predefinições
Yes
Varredura de rastreamento
8 patrols, up to 32 presets for each patrol
Varredura de padrão
4 pattern scans
Ação de estacionamento
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Posicionamento em 3D
Yes
Exibição de status do PTZ
Yes
Tarefa agendada
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Memória de desligamento
Yes
Vídeo
Convencional
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Subfluxo
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Transmissão terciária
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Compressão de vídeo
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

Taxa de bits de vídeo
32 Kbps to 16 Mbps
Tipo H.264
Baseline profile/Main profile/High profile
Tipo H.265
Main profile
Codificação de vídeo escalável (SVC)
H.264 and H.265 encoding
Região de interesse (ROI)
8 fixed regions for each stream
Áudio
Compressão de áudio
G.711/G.722.1/G.726/MP2L2/PCM
Taxa de bits de áudio
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
Taxa de amostragem de áudio
8 kHz/16 kHz/32 kHz/48 kHz
Filtragem de ruído ambiente
Yes
Rede
Protocolos
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Visualização ao vivo simultânea
Up to 20 channels
API
Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuário/Host
Up to 32 users; 3 user levels: administrator, operator, and user
Segurança
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Armazenamento de rede
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client
iVMS-4200, HikCentral Pro, Hik-Connect
Navegador da web
IE11, Chrome57+, Firefox52+, Safari11+
Imagem
Interruptor de parâmetros de imagem
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Switch Dia/Noite
Day, Night, Auto, Schedule
Ampla Faixa Dinâmica (WDR)
120 dB
SNR
>52 dB
Antineblina
Digital Defog
Aprimoramento da imagem
BLC, HLC, 3D DNR
Máscara de privacidade
24 programmable polygon privacy masks, mask color or mosaic configurable
Foco regional
Yes
Exposição regional
Yes
Interface
Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Armazenamento integrado
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Áudio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KO ± 10%;

1 output (line out), line level, output impedance: 600 O

Alarme
2 inputs, 1 output
Apagar
Yes
Evento
Eventos básicos
Motion detection, video tampering alarm, exception, alarm input and output
Evento inteligente
line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep Learning Function
Captura facial
Yes
Geral
Alimentação
24 VAC, Max. 20 W; PoE (802.3at)
Dimensões
Ø 220 mm × 280 mm (Ø 8.66" × 11.02")
Peso
Approx. 3.0 kg (6.61 lb.)
Material
Metal
Operating Condition
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Aprovação
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
Segurança
UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
Ambiente
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Proteção
IP66 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6000V lightning protection, surge protection and voltage transient protection
