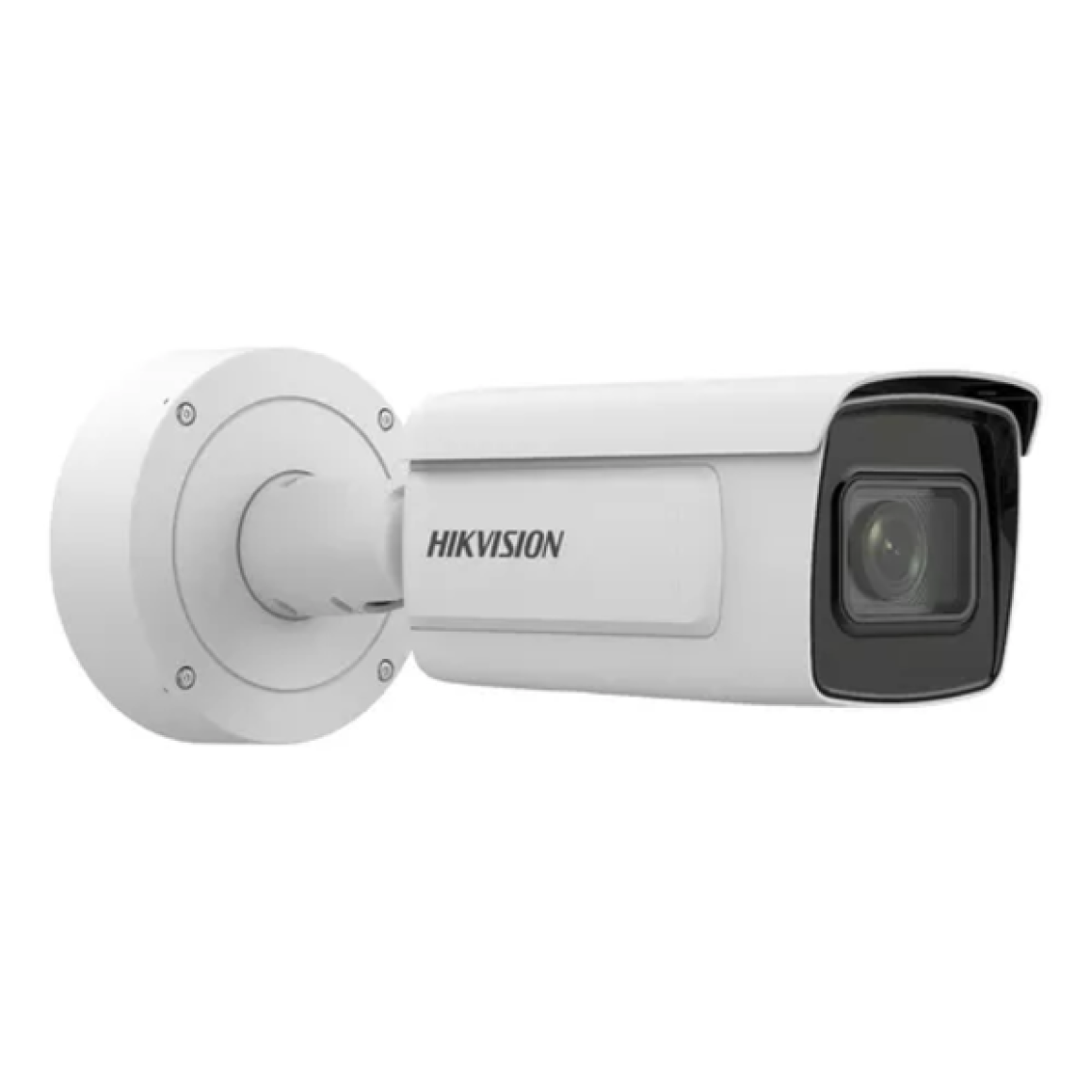

4MP DEEPINVIEW MOTO VARIFOCAL BULLET CAMERA

Câmera
Sensor de imagem
1/1.8" Progressive Scan CMOS
Resolução máx.
2688 × 1520
Iluminação mínima
Color: 0.0005 Lux @ (F1.2, AGC ON);

B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

Tempo do obturador
1 s to 1/100,000 s
Dia e noite
IR cut filter

Blue glass module to reduce ghost phenomenon

Lentes
Focal Length & FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

Foco
Auto,Semi-auto,Manual
Iris Type
P-iris
Abertura
2.8 to 12 mm: F1.2 to F2.5

8 to 32 mm: F1.7 to F1.73

DORI
DORI
Wide:

2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m

8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m

Tele:

2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m

8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m

luminador
Tipo de luz suplementar
IR
Faixa de luz suplementar
2.8 to 12 mm: 50 m

8 to 32 mm: 100 m

Luz complementar inteligente
Yes
IR Wavelength
850 nm
AI Open Platform
Model Specification
Up to 4 models,

Model type: detection model, classification model, mixed model (detection model and classification model)

Vídeo
Convencional
50 Hz:

25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz:

30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Subfluxo
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Transmissão terciária
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Transmissão quaternária
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Transmissão quintenária
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

Compressão de vídeo
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG

Taxa de bits de vídeo
32 Kbps to 8 Mbps
Tipo H.264
Baseline Profile,Main Profile,High Profile
Tipo H.265
Main Profile
Controle da taxa de bits
CBR,VBR
Codificação de vídeo escalável (SVC)
H.264 and H.265 encoding
Região de interesse (ROI)
4 fixed regions for each stream
Corte de alvos
Yes
e-PTZ
Support Patrol and Auto Tracking settings
Áudio
Taxa de bits de áudio
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Compressão de áudio
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Taxa de amostragem de áudio
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Tipo de áudio
Mono sound
Filtragem de ruído ambiente
Yes
Rede
Protocolos
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Visualização ao vivo simultânea
Up to 20 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
Usuário/Host
Up to 32 users

3 user levels: administrator, operator, and user

Segurança
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Armazenamento de rede
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client
iVMS-4200,Hik-Connect,Hik-Central
Navegador da web
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagem
Interruptor de parâmetros de imagem
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Switch Dia/Noite
Day,Night,Auto,Schedule,Alarm Trigger
Ampla Faixa Dinâmica (WDR)
140 dB
Aprimoramento da imagem
BLC,HLC,3D DNR,Distortion Correction,Defog
SNR
= 52 dB
Máscara de privacidade
8 programmable polygon privacy masks
Image Stabilization
EIS
Sobreposição de imagem
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp forma
