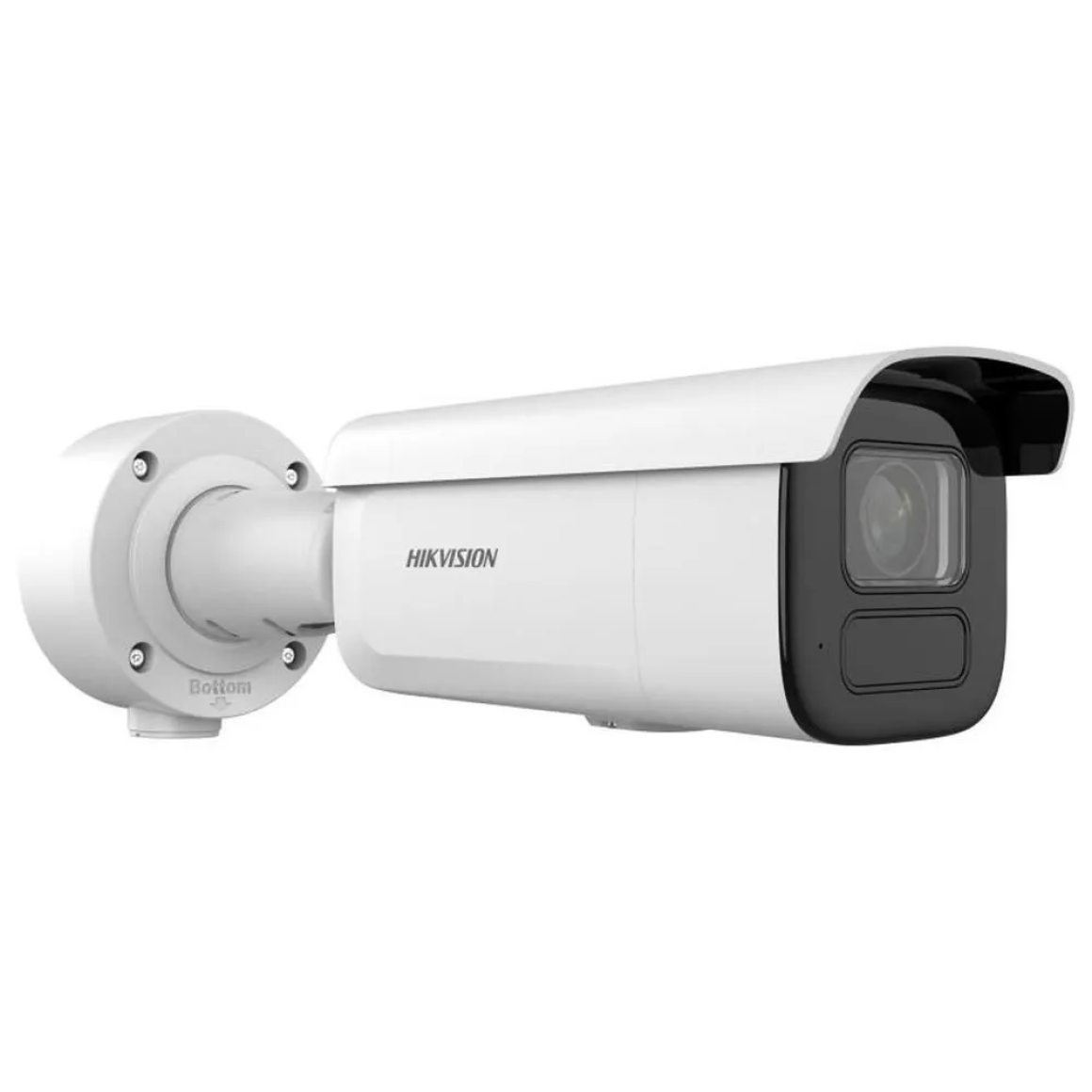

6 MP ACUSENSE VARIFOCAL BULLET NETWORK CAMERA

Câmera
Sensor de imagem
1/2.4" Progressive Scan CMOS
Resolução máx.
3200 × 1800
Iluminação mínima
Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Tempo do obturador
1/3 s to 1/100,000 s
Dia e noite
IR cut filter
Ajuste de Ângulo
Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
Lentes
Tipo de lente
Varifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional
Focal Length & FOV
2.7 to 13.5 mm: horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8°

7 to 35 mm: horizontal FOV 34.4° to 12.5°, vertical FOV 19° to 7.1°, diagonal FOV 39.8° to 14.3°

Montagem da lente
2.7 to 13.5 mm: Ø14; 7 to 35 mm: Integrated
Foco
Auto,Semi-auto,Manual
Iris Type
Auto-iris
Abertura
2.7 to 13.5 mm: F1.6; 7 to 35 mm: F1.6
DORI
DORI
2.7 to 13.5 mm: D: 68 to 200 m, O: 27 to 79 m, R: 13 to 40 m, I: 6 to 20 m

7 to 35 mm: D: 218 to 580 m, O: 86 to 230 m, R: 43 to 116 m, I: 21 to 58 m

luminador
Tipo de luz suplementar
IR
Faixa de luz suplementar
2.7 to 13.5 mm: up to 60 m; 7 to 35 mm: up to 80 m
Luz complementar inteligente
Yes
IR Wavelength
850 nm
HEOP
Open Resources
Memory: 40 MB,

Smart RAM: 350 MB,

eMMC: 2 GB

Computing Power
1.5 TOPS
Open Capability
HEOP 2.0 OpendevSDK
Deep Learning Structure
Caffe,PyTorch,TensorFlow,PaddlePaddle, ONNX
Programming Language
C,C++
Vídeo
Convencional
50 Hz:

20 fps (3200 × 1800)

25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3200 × 1800)

30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Subfluxo
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Transmissão terciária
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Transmissão quaternária
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

Compressão de vídeo
Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG

Taxa de bits de vídeo
32 Kbps to 16 Mbps
Tipo H.264
Baseline Profile,Main Profile,High Profile
Tipo H.265
Main Profile
Controle da taxa de bits
CBR,VBR
Codificação de vídeo escalável (SVC)
H.264 and H.265 encoding
Região de interesse (ROI)
5 fixed regions for main stream and sub-stream
Corte de alvos
Yes
Áudio
Compressão de áudio
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Taxa de bits de áudio
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Taxa de amostragem de áudio
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtragem de ruído ambiente
Yes
Rede
Protocolos
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Visualização ao vivo simultânea
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Usuário/Host
Up to 32 users

3 user levels: administrator, operator, and user

Segurança
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Armazenamento de rede
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client
iVMS-4200,Hik-Connect,Hik-Central
Navegador da web
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagem
Interruptor de parâmetros de imagem
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Switch Dia/Noite
Day,Night,Auto,Schedule
Ampla Faixa Dinâmica (WDR)
120 dB
Aprimoramento da imagem
BLC,HLC,3D DNR,Defog
SNR
= 52 dB
Máscara de privacidade
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Armazenamento a bordo
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Áudio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium

Alarme
2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes
Potência de saída
12 VDC, max. 100 mA
Evento
Eventos básicos
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Evento inteligente
scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Captura facial
Yes
Contagem de pessoas
Yes
Geral
Alimentação
12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3at, Class 4, max. 15 W

Material
Aluminum alloy body
Dimensões
Ø105 mm × 332.8 mm (Ø4.1" × 13.1")
Dimensões do pacote
385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Peso
Approx. 1475 g (2.9 lb.)
Com peso do pacote
Approx. 2276 g (4.8 lb.)
Condições de armazenamento
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condições de inicialização e operação
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Função geral
Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Idioma
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Aprovação
EMC
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

Segurança
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

LOA: IEC/EN 60950-1

Ambiente
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Proteção
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Proteção anticorrosão
-Y: NEMA 4X (NEMA 250-2018)
