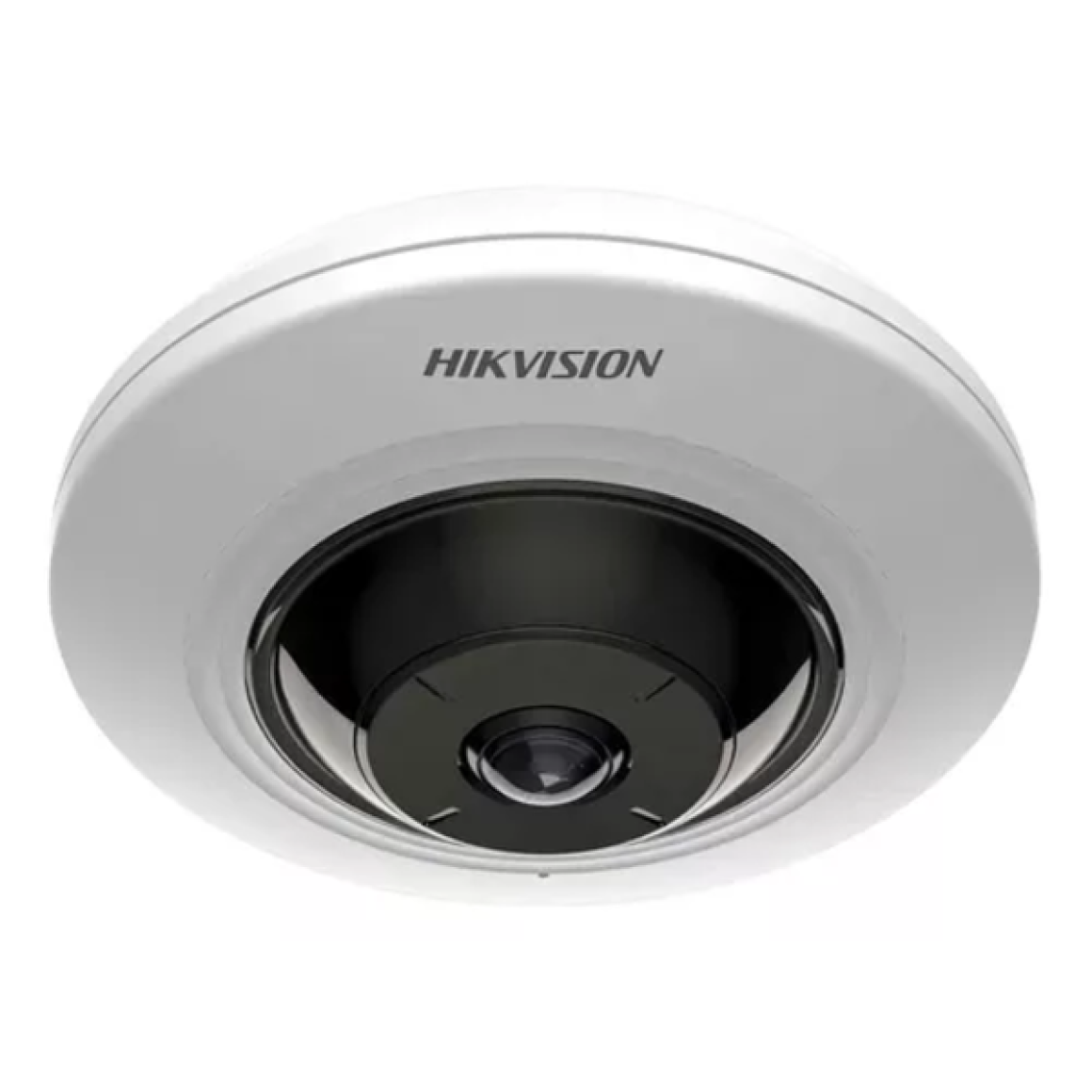

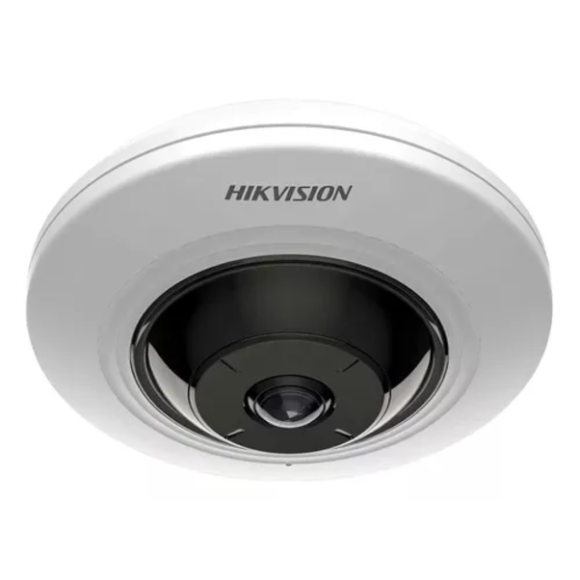

5 MP ACUSENSE FISHEYE NETWORK CAMERA

Câmera
Sensor de imagem
1/2.7" Progressive Scan CMOS
Resolução máx.
2560 × 1920
Iluminação mínima
Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
Tempo do obturador
1/3 s to 1/100,000 s
Dia e noite
IR cut filter
Lentes
Tipo de lente
Fixed focal lens, 1.05 mm
Focal Length & FOV
1.05 mm, horizional FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
Montagem da lente
M12
Iris Type
Fixed
Abertura
F2.25
Depth of Field
0.1 m to 8
DORI
DORI
D: 21 m, O: 8 m, R: 4 m, I: 2 m
luminador
Tipo de luz suplementar
IR
Faixa de luz suplementar
Up to 8 m
Luz complementar inteligente
Yes
IR Wavelength
850 nm
HEOP
Open Resources
Memory: 60 MB,

Smart RAM: 400 MB,

eMMC: 2 GB

Computing Power
1.5 TOPS
Open Capability
HEOP 1.0 OpendevSDK
Deep Learning Structure
Caffe,PyTorch,TensorFlow
Programming Language
C,C++
Vídeo
Convencional
50 Hz: 25 fps/60 Hz: 30 fps:

Fisheye View:

2560 × 1920, 2048 × 1536, 1280 × 960

180 Panorama View:

2048 × 1152, 1280 × 720

180 Dual Channel Panorama View:

4096 × 576,2048 × 288

4PTZ View:

camera 01/camera 02/camera 03/camera 04: 1200 × 900

Fisheye + 3PTZ View:

camera 01: 2048 × 1536, 1280 × 960

camera 02/camera 03/camera 04: 1200 × 900

Subfluxo
50 Hz: 25 fps/60 Hz: 30 fps:

Fisheye View:

640 × 480, 640 × 360

180 Panorama View:

640 × 480, 640 × 360

Fisheye + 3PTZ View:

camera 01: 640 × 480, 640 × 360

Compressão de vídeo
Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Taxa de bits de vídeo
32 Kbps to 16 Mbps
Tipo H.264
Baseline Profile/Main Profile/High Profile
Tipo H.265
Main Profile
Controle da taxa de bits
CBR/VBR
Codificação de vídeo escalável (SVC)
H.264 and H.265 encoding
Região de interesse (ROI)
5 fixed regions for main stream and sub-stream
Corte de alvos
Yes
Fisheye Display
Tipo de montagem
Support wall/table/ceiling mounting
Modo de decodificação
Support hardware decoding and software decoding
Áudio
Compressão de áudio
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Taxa de bits de áudio
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Taxa de amostragem de áudio
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtragem de ruído ambiente
Yes
Rede
Protocolos
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Visualização ao vivo simultânea
Up to 20 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuário/Host
Up to 32 users. 3 user levels: administrator, operator and user
Segurança
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
Armazenamento de rede
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client
iVMS-4200, Hik-Connect, Hik-Central
Navegador da web
Plug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Imagem
Interruptor de parâmetros de imagem
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Switch Dia/Noite
Day, Night, Auto, Schedule
Ampla Faixa Dinâmica (WDR)
120 dB
Aprimoramento da imagem
BLC, HLC, 3D DNR
SNR
= 52 dB
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Armazenamento a bordo
Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB

Microfone integrado
-U: Yes
Áudio
1 input(s) (line in), four-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,

1 output(s) (line out), four-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium

Alarme
1 input, 1 output (max. 12 VDC, 30 mA)
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key
Yes
Evento
Eventos básicos
Motion detection,video tampering alarm,exception
Linkage
Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
Deep Learning Function
Contagem de pessoas
Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

Supports real-time uploading and uploading by statistic cycle

Gerenciamento de filas
Supports up to 4 detection regions, and independent arming schedule and linkage method
Mapa térmico
Yes

Geral
Alimentação
12 VDC ± 25%, 0.50 A, max. 6 W,Ø5.5 mm coaxial power plug,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W

Dimensões
Ø119.9 mm × 41.2 mm (Ø4.7 × 1.6\")"

Dimensões do pacote
150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Peso
Approx. 320 g (0.7 lb.)
Com peso do pacote
Approx. 510 g (1.1 lb.)
Função geral
Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Condições de armazenamento
-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Condições de inicialização e operação
-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Idioma
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Aprovação
EMC
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015

Segurança
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

Ambiente
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
