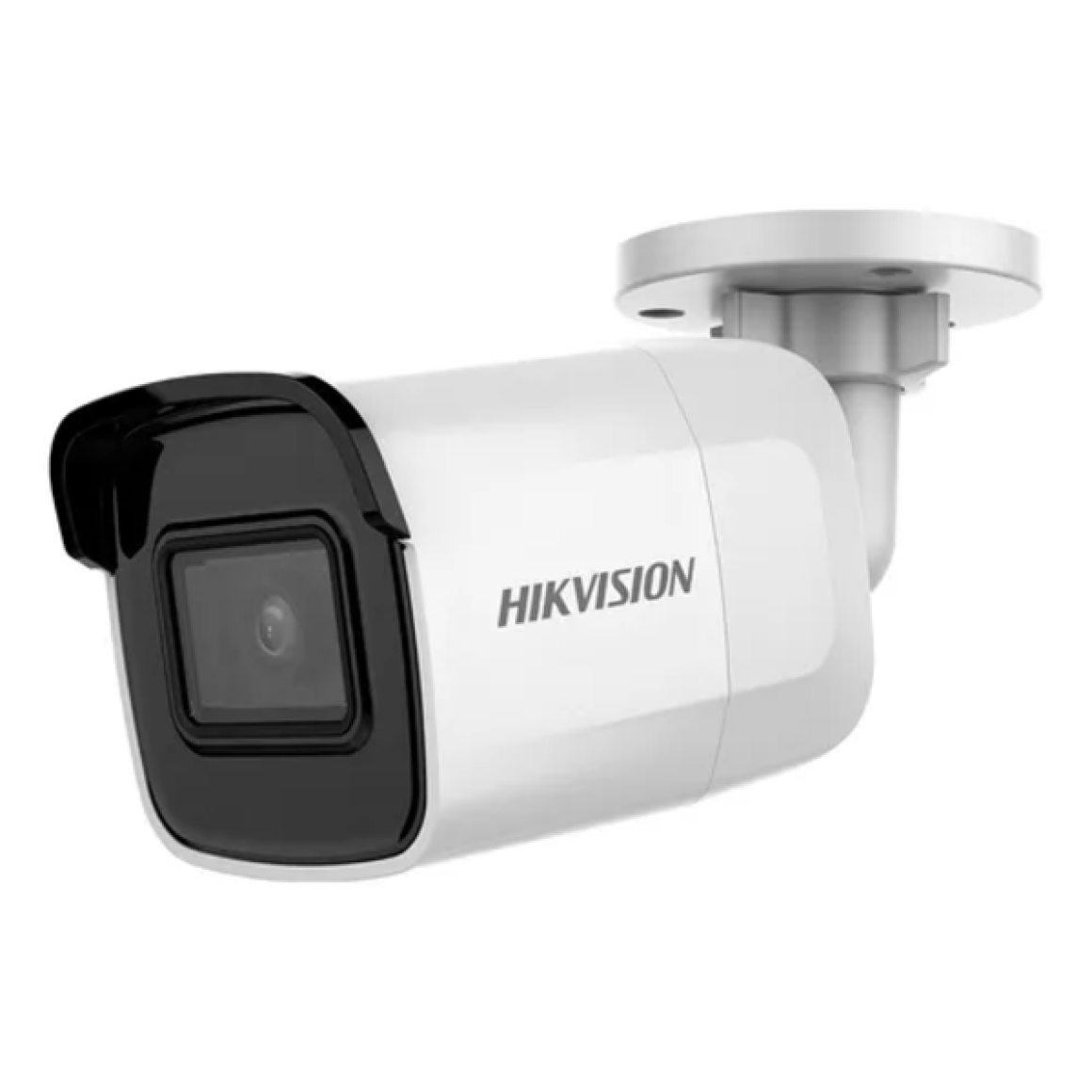

1080p | Bullet | IP | 2,8mm | 1/2.7" | 111.6° | 30m IR EXIR | H265+ | Linha Intrusão | Suporta SD 256 GB | EXTERNO|IP67 | PLASTICO E METAL

Câmera
Sensor de imagem
1/2.7" Progressive Scan CMOS
Resolução máx.
1920 × 1080
Iluminação mínima
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Tempo do obturador
1/3 s to 1/100,000 s
Dia e noite
IR Cut Filter
Ajuste de Ângulo
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lentes
Foco
Fixed
Focal Length & FOV
2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9°

4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°

6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°

Montagem da lente
M12
Abertura
F1.6
luminador
Tipo de luz suplementar
IR
Faixa de luz suplementar
Up to 30 m
IR Wavelength
850 nm
Vídeo
Convencional
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Subfluxo
50Hz: 25 fps (640 × 480, 640 × 360)

60Hz: 30 fps (640 × 480, 640 × 360)

Compressão de vídeo
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Taxa de bits de vídeo
32 Kbps to 8 Mbps
Tipo H.264
Baseline Profile/Main Profile/High Profile
Tipo H.265
Main Profile
Região de interesse (ROI)
Support 1 fixed region for main stream
Rede
Visualização ao vivo simultânea
Up to 6 channels
API
Open Network Video Interface, ISAPI
Usuário/Host
Up to 32 users. 3 levels: administrator, operator and user
Armazenamento de rede
Support Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, Hik-Central
Navegador da web
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Imagem
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Switch Dia/Noite
Day, Night, Auto, Schedule
Aprimoramento da imagem
BLC, 3D DNR
Ampla Faixa Dinâmica (WDR)
120 dB
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Armazenamento a bordo
Built-in Micro SD slot, up to 256 GB
Reset Key
Yes

Evento
Evento inteligente
Line crossing detection, intrusion detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Geral
Alimentação
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material
Metal, Plastic
Dimensões
69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")
Dimensões do pacote
216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7)
Peso
Approx. 350 g (0.8 lb.)
Com peso do pacote
Approx. 450 g (1.0 lb.)
Condições de armazenamento
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Condições de inicialização e operação
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Idioma
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,

French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,

Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Função geral
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Aprovação
EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Segurança
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Ambiente
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Proteção
IP67 (IEC 60529-2013)
